S.R. 0064, Section A01

Project Cost: $1.83 Million (Current Estimate)
Client: Engineering District 2-0
Contact: Mr. Mark Kucherer, P.E. (814-765-0440)
Project Letting - Summer 2015

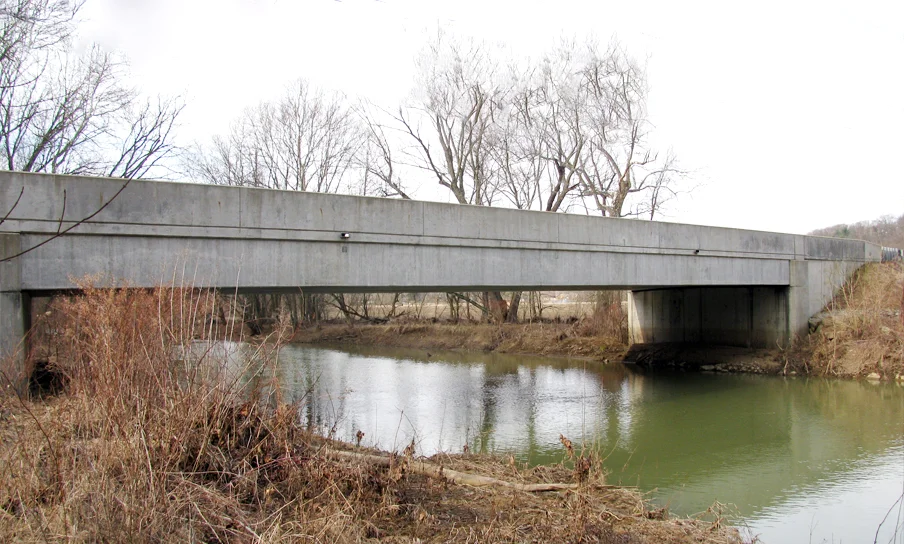

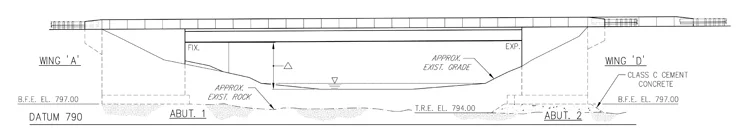

The project consists of the replacement of the existing two-span reinforced concrete T-beam bridge that carries S.R. 0064 over Fishing Creek at segment 0020, offset 1070. A single-span adjacent box beam bridge with conventional abutments is proposed. Minimal roadway approach work will be included for approximately 160 feet on the western approach and 190 feet on the eastern approach. Traffic control will consist of half-width phased construction, and single lane traffic controlled with temporary signals. Client: Engineering District 2-0; Contact: Mr. Mark Kucherer, P.E. (814-765-0440); Project Letting - Summer 2015.

S.R. 0188 Section A10

View fullsize

View fullsize

Cost: $3.0 million
Client: Engineering District 12-0
Contact: William Oshnack (724-439-7321)
Project Letting: December 2008

Bridge Replacement over South Fork of Tenmile Creek - This project consisted of a single span (125’) P/S box beam replacement bridge, constructed off line to both improve the alignment of S.R. 0188 and permit traffic to be maintained throughout construction on the original bridge. The project included 1,850 LF of approach roadway reconstruction and incorporated sewer line relocation.
